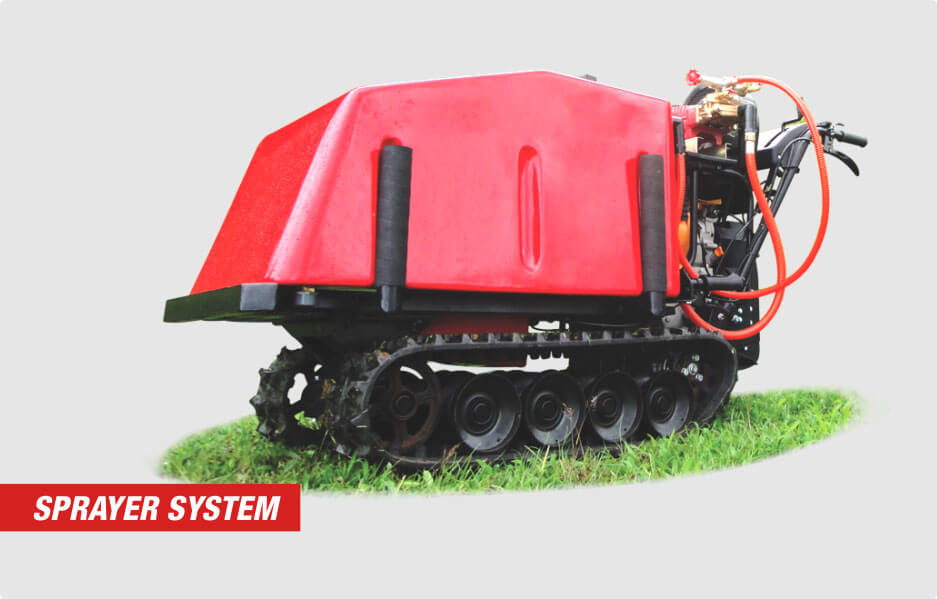

RedBee | Sprayer System Multi Utility Track Vehicle

RedBee MUTV Modules are specially designed additional units that fit onto the same chassis of the Basic Machine. Each module is designed to suit different functions. They can be added on at any time, based on changing needs.

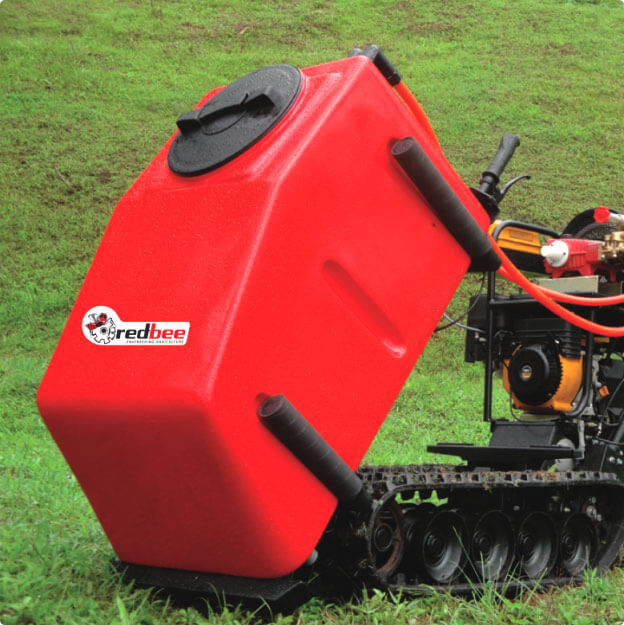

230L 7-Layered FRP Tank

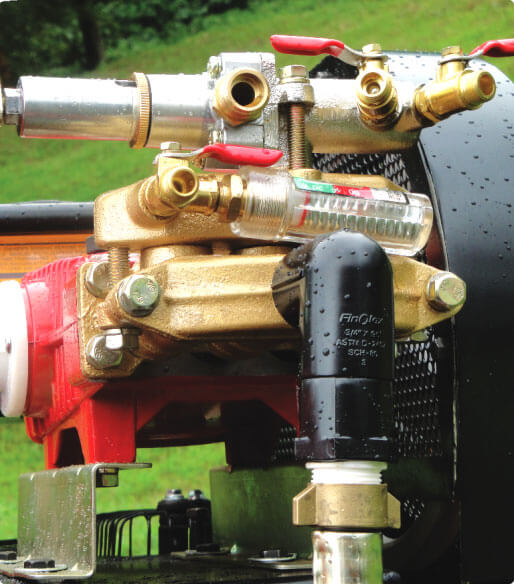

2.5HP / 5HP HTP Automatic Pump for Easy Spraying with Primary & Secondary Filters
Saves nearly 2 hours of Spray set-up and dismantling every day
10 seconds to switch between Load Carrying and Spraying modules

Cover more area in lesser time
with spraying >

Foliage spray
High-pressure spraying
Pressure washing
Irrigation

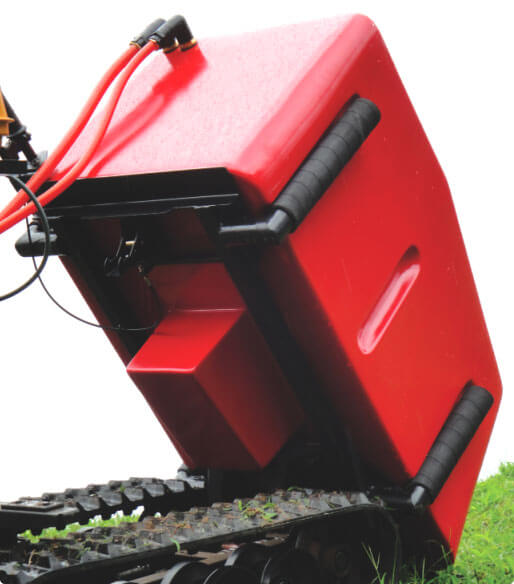

Sump specially incorporated to ensure continuous supply of solution to the pump irrespective of undulations.

Cover more area in lesser time
with spraying >

Foliage spray
High-pressure spraying
Pressure washing
Irrigation

Sump specially incorporated to ensure continuous supply of solution to the pump irrespective of undulations.

Pump	HTP22A
Rating (HP/rpm)	1.5-2.5/500-1000
Volumetric Discharge (L/min)	18-22
Working Pressure (kg/cm2)	20-40
Accumulator	Spring Loaded (Automatic)
Pump Oil (Grade 20-W40) (ml)	700
Net weight (kg)	9.2

Pump	HTP45A
Rating (HP/rpm)	4.5-5/500-1000
Volumetric Discharge (L/min)	20-36
Working Pressure (kg/cm2)	20-40
Accumulator	Spring Loaded (Automatic)
Pump Oil (Grade 20-W40) (ml)	1000
Net weight (kg)	9.2

The RedBee MUTV Detachable Optional Modules can be procured any time.
