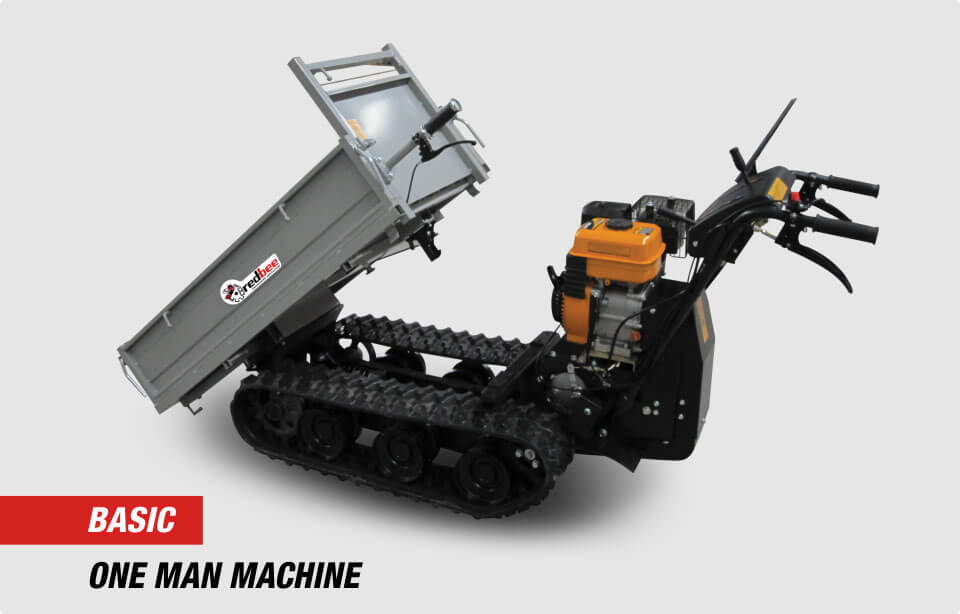

RedBee | Basic Multi Utility Track Vehicle

The RedBee MUTV is a highly versatile machine designed to increase productivity and efficiency in the agricultural sector. It simplifies agricultural processes and eases the work pressure on manual labourers. This multifaceted machine delivers several advantages in various ways.

Needs just a 2ft-Narrow Path
Carrying Capacity of up to 500kgs
Steel-Reinforced Rubberised Tracks instead of Wheels
Gradability up to 30 degrees

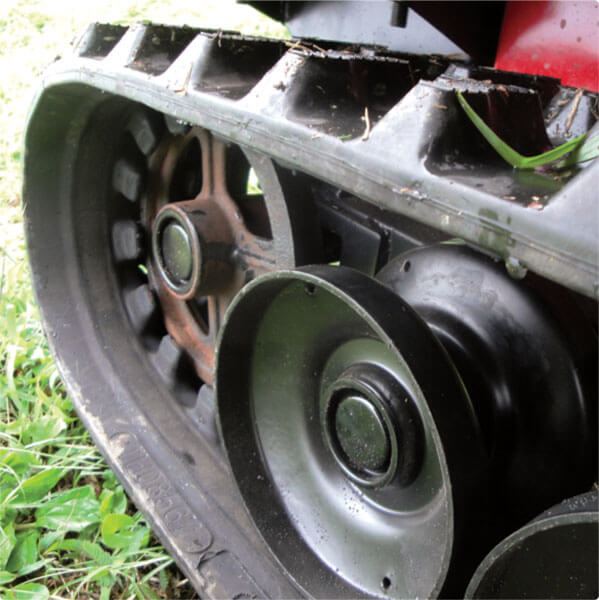

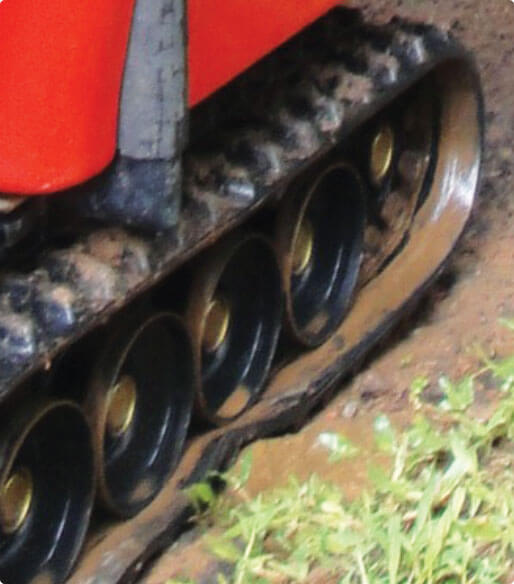

USP - Rubberised tracks reinforced with steel beams throughout the pedrail.

RedBee MUTV Modules are specially designed additional units that fit onto the same chassis of the Basic Machine. Each module is designed to suit different functions and agricultural practices. They can be added on at any time, based on changing needs.

USP - Rubberised tracks reinforced with steel beams throughout the pedrail.

KGFC 500 / MUTV-500

Engine Type	Single Cylinder, Air cooled, 4-stroke OHV
Net Power (HP/rpm)	4.2/3000
Max Power (HP/rpm)	4.8/3600
Torque (Nm/rpm)	10.8/2500
Displacement (cc)	201
Fuel Tank Capacity (L)	3.6
Transporter width (mm)	615
Load Carrying Capacity (kg/degree slope)	350-500/upto 25
Gears	2-Forward, 2-Reverse
Engine Oil (Grade 20-W40) (ml)	600
Gear Box Oil (Grade 90) (ml)	2000
Speed (km/hr)	1.2-4.3
Ignition Mode	Recoil Starter
Clutch Mode	Belt Tension Clutch
Braking Mode	Mechanical Inner Expansion
Net weight (kg)	190

The Redbee MUTV was designed keeping in mind the undulating contours of typical Indian agricultural terrains, and the effect of the Indian Monsoon. This robust multi-utility machine requires only one man to operate and is built to work in tough conditions, with tracks that enable it to smoothly glide over almost any slushy, rocky or muddy surface.

The RedBee MUTV
Detachable Optional Modules
can be procured any time.
